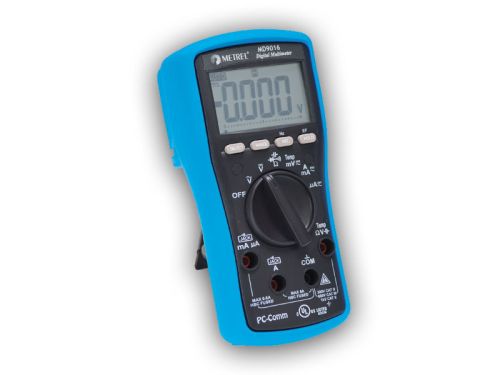

Digital multimeter MD 9016

The digital multimeter MD 9016 is a perfect combination of size, Innovative functions and built-in PC communication. It is capable to detect and diagnose most electrical and electrotechnical problems. Display with large easy-to-read figures and one-handed operation make MD 9016 an extremely easy-to-use. This compact instrument combines a high level of functionality and small size and portability.

Measuring functions

• AC, DC voltage measurement
• AC, DC current measurement;
• Capacitance measurement;
• Resistance measurement;
• Diode test;
• Frequency measurement;
• Continuity test (acoustic signalling);
• Electric field detection;
• Temperature measurement.

Key features

• Auto-ranging: user can switch between auto and manual ranging.
• EF detection: non-contact and probe contact electric field detection.
• Relative zero mode: relative function for comparing the difference between signals or removing background noise.
• Hold: data hold function freezes the display for later view.
• PC Link: test results can be downloaded to the computer via the optional PC software.
• Safe: CAT II / 1000 V, CAT III / 600 V and CAT IV / 300 V overvoltage protection.

Technical data

• Dimensions (w x h x l): 80 x 50 x 161 mm
• Mass (without accessories): 340 g
