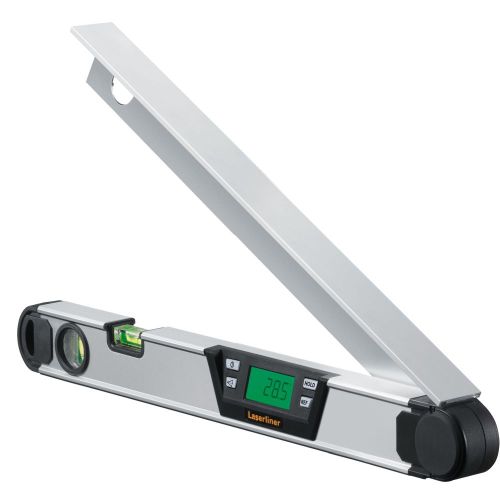

Digital electronic protractor

The digital electronic protractor can be used to precisely determine internal and external angles, for example when measuring sloping roofs and fitting furniture or windows. An illuminated display on the front and back shows the measured values in large digits and is suitable for overhead measurements. The extendable bevel allows the device to be used in hard-to-reach places. The hold function makes it possible to freeze the display in inaccessible places for later reading.

• Precise determination of internal and external angles
• Ideal for measuring roof pitches and fitting furniture or windows
• Angle measurement in hard-to-reach places with extendable and foldable measuring arm on both sides
• Work on both sides thanks to illuminated LCD displays on the front and rear
• Convenient overhead measurements: Both displays can be rotated at the touch of a button
• High measurement reliability thanks to display freezing in inaccessible places
• Display of angle bisectors at the touch of a button, ideal for mitre cuts
• AutoShut Off function

Technical data:

• Angle display: yes
• Internal and external angles: yes
• Angle bisector: yes
• Hold/memory: yes
• Level accuracy: ± 0.25 mm / m
• Display accuracy: 1 decimal place
• Angle measurement accuracy: ± 0.2°
• Power supply: 2 x 1.5V LR6 (AA)
• Operating time: approx. 8 hours
• Temperature (working conditions): 0°C ... 50°C

Scope of delivery:

• ArcoMaster 60
• batteries
• Carrying bag
